AEP
ABR / ASSR / eABR / eCochG / VEMP
Objective hearing assessment with advanced auditory evoked potential testing for comprehensive diagnostics.
Multiple tests. One platform.
ABR · ASSR · OAE · Audiometry
Take diagnostics to the patient
PORTABLE CLINICAL TESTING
Modular by design
CONFIGURE. EXPAND. ADAPT

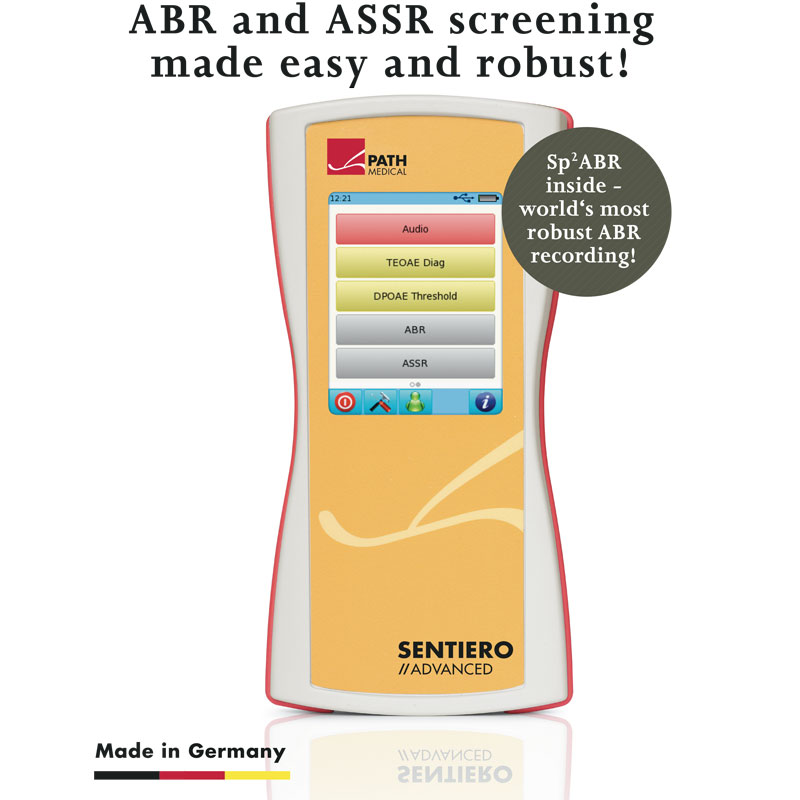

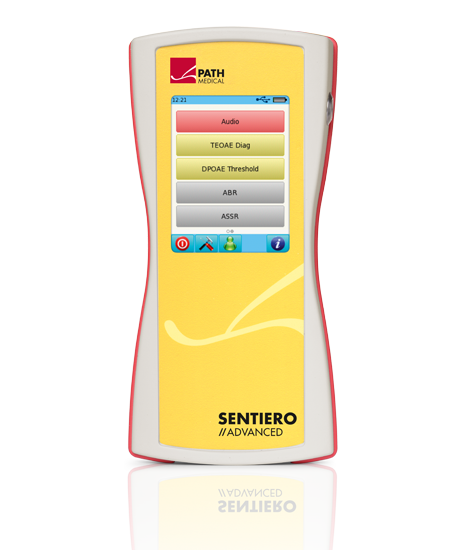

SENTIERO
// ADVANCEDComprehensive audiological diagnostics in one handheld platform.
SENTIERO ADVANCED combines ABR, ASSR, eABR, eCochG, OAE, air, bone and speech audiometry in a modular handheld device; tympanometry is available with the compatible Tymp add-on. Spread Spectrum (Sp2) technology helps manage electrical interference during ABR recordings. Compact and NOAH compatible, the device supports screening and diagnostic workflows according to its configured modules.
Overview
Screening, reconfirmation, and diagnostics- all in one device.
SENTIERO ADVANCED isn’t a simple screener- it’s a complete diagnostic pathway. From preterm and at-risk newborns through full adult audiometric workups, the same handheld instrument covers ABR Quick screening, ASSR threshold estimation, DPOAE and TEOAE, and full 2-channel diagnostic audiometry, all guided through a 3.5\” color touch screen with on-device QWERTY entry.
Auditory evoked potentials are small signals that can be affected by electrical interference from the testing environment. SENTIERO ADVANCED uses Spread Spectrum (Sp2) technology to help manage interference during ABR recordings; recording quality still depends on the measurement conditions.
OAE testing goes further with patented FMDPOAE® (frequency- modulated DPOAE) and multichannel, dual-probe measurement-mapping the cochlea on both ears at once. Every result, from ABR to audiometry, is stored on-device and exportable via MIRA PC software or direct to PATHTRACK, keeping your data connected from beside to tracking center.
Multi-Module
Testing
Touchscreen
Display
Portable
Design
Patient Management
Data
Features
Designed for Reliable ABR Testing
Evoked-potential recordings can be affected by nearby electrical equipment. SENTIERO ADVANCED uses Spread Spectrum (Sp2) technology to help manage interference during ABR recording. Follow the instructions for use when preparing the patient and selecting a suitable testing environment.
- Spread Spectrum (Sp2) interference resistance
- Click, chirp, tone burst & frequency-specific stimuli
- Weighted averaging with self-tuning 50/60 Hz notch filter
✓
Tympanometry with Class 1 and 2
◌
Compact and handheld design
★
NOAH compatible

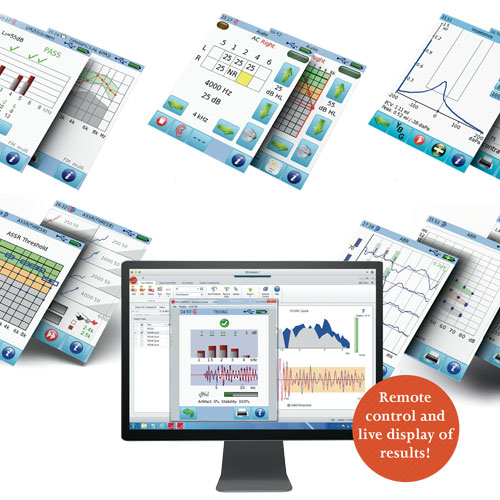

Map the cochlea in half the time
Patented FMDPOAE® technology and multichannel, dual-probe testing let SENTIERO ADVANCED measure both ears at once, with custom DPOAE protocols spanning up to 30 points per octave between 800Hz and 10kHz for a much cochlear detail as your protocol demands.
- Patented FMDPOAE® Technology
- Simultaneous Dual-Probe Testing
▣
Flexible
↺
Automated
◎
Configurable
Protocols
Screening, reconfirmation, and diagnostics-all in one single device.
OAE
TEOAE & DPOAE
Reliable otoacoustic emission testing for evaluating cochlear outer hair cell function.
Immittance
Tympanometry / Acoustic Reflex / Eustachian Tube Function / eSRT
Evaluating middle ear functions wıth multıfrequency solutıons, comprehensive reflexes and other advanced techniques.
Audiometry
Pure Tone Audiometry / Speech and Play Audiometry using Air and Bone Conduction
Screening and diagnostic audiometry for all age groups.
Resources
Client resources and clinical support
Explore the information you need to configure and use SENTIERO ADVANCED, along with training materials.
Ready to bring SENTIERO ADVANCED into your clinic?
Talk to a local specialist to discuss workflow design, implementation planning, onboarding support and other aspects of integrating SENTIERO ADVANCED into your clinic.
