Audiometry
Pure Tone Audiometry
Air and bone conduction testing across 125 Hz to 8 kHz, with stimulus levels from -10 to 110 dB HL in 5 dB steps.
SENTI // DESKTOP FLEX
Swap transducers without losing a step to recalibration.

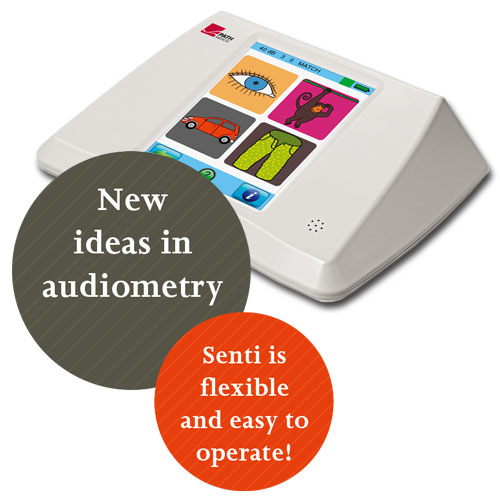

SENTI DESKTOP FLEX is a portable, battery-powered audiometer built around one simple idea: calibration should live on the transducer, not the device. Swap a headphone or bone conductor for another and the system just knows — no recalibration, no downtime. Available in a screening configuration (air conduction, Class 4A) or a full diagnostic configuration (air and bone conduction, Class 3), it covers pure tone audiometry, speech testing, and hearing aid fitting from a single color touch-screen unit.
Overview
One transducer goes down, another goes straight to work.
SENTI DESKTOP FLEX stores calibration data on the transducer itself, so exchanging one for another is just a cable swap. A clinic running multiple transducer types, or one that needs a spare on hand for uptime, doesn't lose testing time to it.

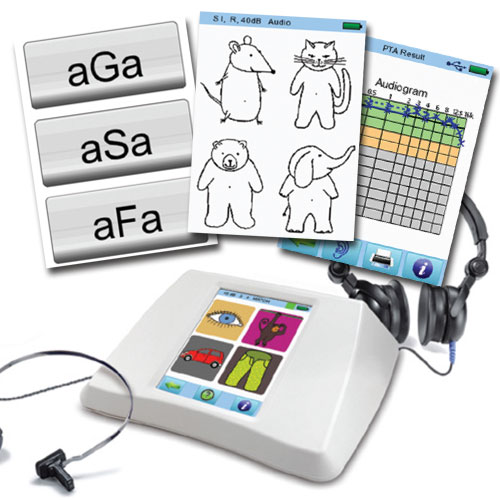

The system covers pure tone air and bone conduction, speech audiometry, and hearing aid fitting across a 12-point frequency range from 125 Hz to 8 kHz, with stimulus levels from -10 to 110 dB HL in 5 dB steps. Choose the Class 4A screening configuration for air-only testing, or the Class 3 diagnostic configuration with bone conduction and a patient response button included.
Optional upgrade modules extend the same platform further — MAGIC turns pure-tone testing into an image-based test for children, and automated Békésy and Hughson-Westlake procedures reduce how much an operator has to run by hand. Every result is NOAH compatible, so nothing needs re-entering into the record system a practice already uses.
Exchangeable – No Recalibration Needed
Transducers
125 Hz – 8,000 Hz (12-Point)
Frequency Range
-10 to 110 dB HL, 5 dB Steps
Stimulus Levels
Screening (Class 4A) or Diagnostic (Class 3)
Configurations
Features
Calibration that travels with the transducer, not the device.
Every headphone and bone conductor carries its own calibration data. Plug in a replacement and SENTI DESKTOP FLEX reads it automatically — no manual recalibration step, no waiting on a technician before a clinic can get back to testing.
- Calibration data stored on each transducer
- Pure tone air and bone conduction audiometry
- Speech audiometry and hearing aid fitting
Two configurations, one upgrade path.
Start with the Class 4A screening configuration for straightforward air-conduction testing, or step up to the Class 3 diagnostic configuration with bone conduction and a patient response button included. Optional MAGIC and automated Békésy/Hughson-Westlake modules extend the same platform as clinical needs grow.
- NOAH-Compatible Software
- MAGIC & Automated Testing Modules
Protocols
Essential tools for comprehensive audiometry.
Speech
Speech Audiometry
Speech testing to evaluate hearing performance and speech understanding, including the Universal Speech Test for multi-language clinics.
Resources
Client resources and clinical support
Explore the latest documentation and training materials for SENTI DESKTOP FLEX.
Ready to bring SENTI DESKTOP FLEX into your clinic?
Talk to a local specialist to discuss workflow design, implementation planning, onboarding support and other aspects of integrating SENTI DESKTOP FLEX into your clinic.
